Product Details:
|
| Voltage: | 24V | Power: | 20-100W |
|---|---|---|---|
| Speed: | 700-2000rpm | Blade Material: | Galvanized Plate OrAluminum |
| Airflow: | 200 -1000 M³/h | IP Class: | IP 55/44 |
| Frequency: | 50/60 | Noise: | 60-75dB(A) |
| Highlight: | Aluminum External Rotor Fan,24V External Rotor Fan,IP55 External Rotor Motor |
||

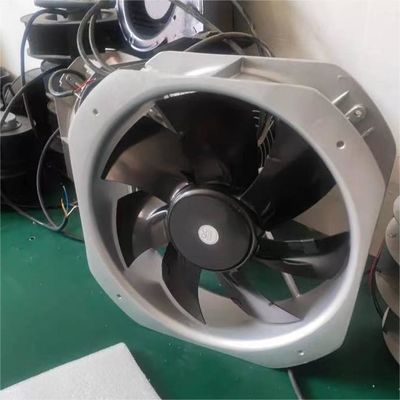

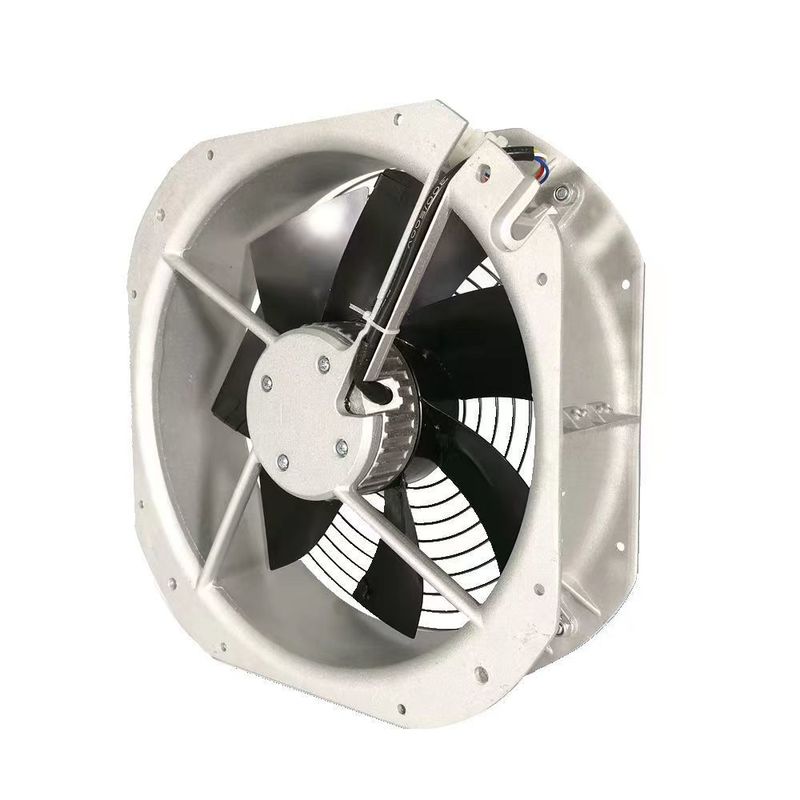

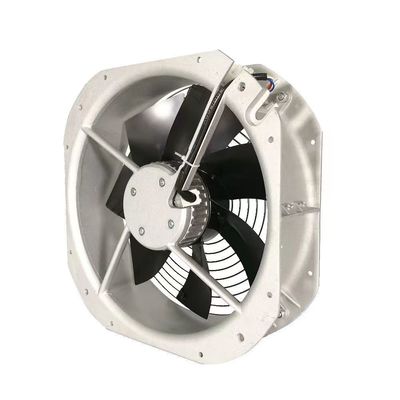

24V Low Voltage Aluminum external rotor fan for heat dissipation precision air conditioning
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting Centrifugal Blower Fan, cross flow fan, air conditioner fan motor, fan blower for several years. We have our own production base and a strong R&D team. This page shows a 24V Low Voltage Aluminum external rotor fan for heat dissipation precision air conditioning
Quick Details
| Airflow: 961 m3/h |
| Pst: 262 Pa |
| Voltage: 24 VDC |
| Power: 45 W |
| Current: 1.9 A |
| Speed: 2950 rpm |
| Noise: 65 dB(A) |
| IP: 44 / 55 |
| Class : B |
| Approval: CE |
| Weight: 2.5KGS |
| Temp. S:-25℃-+60℃ |
Industrial Axial Flow Fans Features
House material: Die-cast Aluminum
Impeller material: Sheet Steel
Motor protection: Polarity Protection;
Locked-rotor protection: Soft start; Over current
protection; Overvoltage Protection;
Technical features: 0-10vdc/pwm speed control
Tacho output
PWM frequency: 1-10khz
Operation mode: S1
Industrial Axial Flow Fans Applications
Centrifugal fan means that the wind or wind flow direction fanned out by the fan is centrifugal from the center outward, that is, centrifugal, and then concentrated in one air outlet.
DC brushless centrifugal blower fan products have the characteristics of energy saving and environmental protection, large air volume, low noise, long life, beautiful appearance, reliable operation and convenient installation. Widely used in FFU industry, air conditioning industry, fresh air system industry, household appliances, injection molding equipment, air purifier, automobile and office equipment and other fields.
Low pressure fan is a very common fan, its main role is to generate low pressure wind. In industrial production and life, low-pressure fans are widely used, such as ventilation, heating, heat dissipation, drying, dust suction and other aspects.
Low-pressure fans are usually composed of motor, rotor, casing, intake pipe, outlet pipe, gear and reducer. The motor drives the rotor to rotate, and the rotating rotor drives the gear and the reducer to rotate, and then the air is sucked into the rotor, and the gas is compressed and the gas is discharged through the centrifugal force generated by rotation.
