Product Details:
|
| Voltage: | 24-48V | Power: | 30-300W |
|---|---|---|---|
| Speed: | 1000-6000rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-0.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | 110V micro brushed DC motor,220V micro brushed DC motor,PMDC small permanent magnet motor |
||

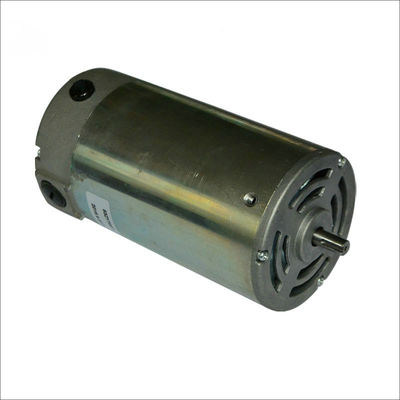

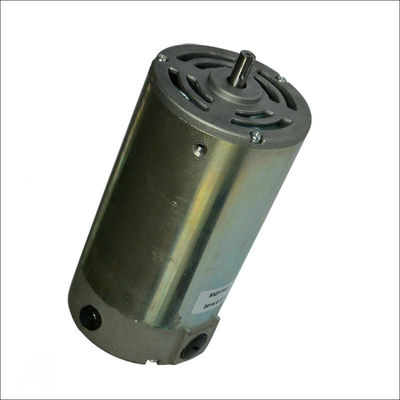

83ZYT 110-220V Micro Permanent Magnet Brushed DC Motor forMechanical Equipment
Introduction
This is a permanent magnet brushed DC motor 200-500W use for mechanical equipment or agriculture auto machine and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:100-300W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/48V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m TORQUE | W Power |
mm Length | ||
| CURRENT | SPEED | CURRENT | SPEED | |||||
| A83ZYT001 | 220 | 0.16 | 5600 ±8% | 1.60 | 5000 ±8% | 0.5 | 262 | 135 |
| A83ZYT002 | 110 | 0.32 | 5600 ±8% | 3.00 | 5000 ±8% | 0.5 | 262 | 135 |
| A83ZYT004 | 220 | 0.18 | 6000 ±8% | 2.00 | 5500 + 8% | 0.5 | 288 | 135 |
| A83ZYT005 | 220 | 0.18 | 5100 ±8% | 2.50 | 4500 + 8% | 0.8 | 377 | 166 |
| A83ZYT006 | 220 | 0.18 | 7000 ±8% | 3.50 | 6300 ±8% | 0.8 | 528 | 166 |
| B83ZYT001 | 220 | 0.16 | 5600 ±8% | 1.60 | 5000 ±8% | 0.5 | 262 | 145 |
| B83ZYT002 | 110 | 0.32 | 5600 ±8% | 3.00 | 5000 ±8% | 0.5 | 262 | 145 |
| B83ZYT005 | 220 | 0.18 | 5100 + 8% | 2.50 | 4500 ±8% | 0.8 | 377 | 176 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
Permanent Magnet Brushed DC Motor Information
How to maintain a permanent magnet brush motor?
It is a complex problem to use and maintain a permanent magnet brush motor. The common problems are summarized as follows:
(1) Check the wear of the carbon brush, especially where it is not easy to see the lower part of the commutator. When the carbon brush is worn to the limit position, it shall be replaced. The remaining height of the carbon brush shall be subject to the life line of the carbon brush.
(2) Check whether the accessories of the carbon brush, the pressure finger of the brush holder and the pressing plate at the top of the brush are broken, whether the carbon brush is braided, whether the wire is burnt and oxidized, and regularly check the temperature change of the carbon brush holder, collector ring or commutator.
