Product Details:
|
| Voltage: | 24-48V | Power: | 10-100W |
|---|---|---|---|
| Speed: | 1000-3600rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-1.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | PMDC 12v permanent magnet motor,40w Permanent Magnet Brushed DC Motor,Permanent Magnet Brushed DC Motor 120v |
||

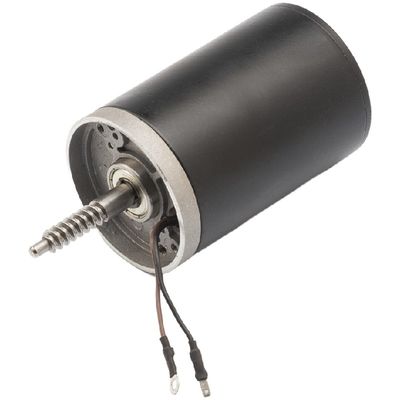

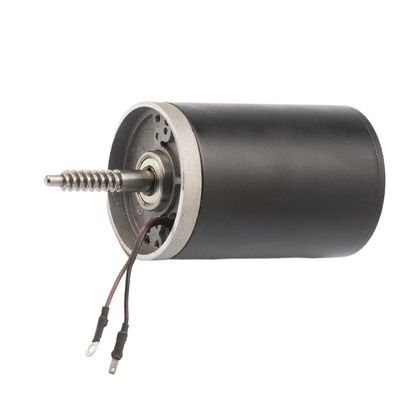

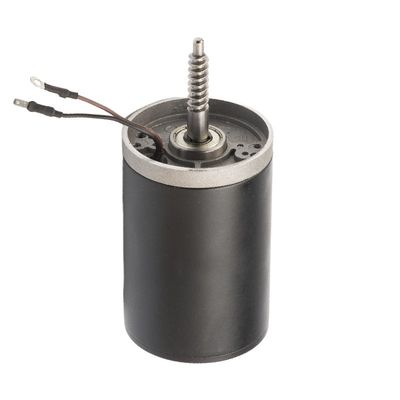

63ZYT 12V 40W Permanent Magnet Brushed DC Motor for Electric actuator
Introduction
This is a permanent magnet brushed DC motor 10-100W use for all kinds of electric actuator
or agriculture auto machine and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:10-100W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:12V/240V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE |
No load | Rated load | N.m TORQUE |
W Power |
mm Length |
||
| A CURRENT |
rpm SPEED |
A CURRENT |
rpm SPEED |
|||||
| 63ZYT035(035) | 24 | ≤0.8 | 4500±8% | ≤4.5 | 3800±8% | 0.18 | 70 | 117 |
| 63ZYT045(045) | 12 | ≤1.2 | 4000±8% | ≤10.5 | 3000±8% | 0.24 | 75 | 127 |
| 63ZYT045(045) | 24 | ≤0.65 | 4000±8% | ≤5 | 3000±8% | 0.24 | 75 | 127 |
| 63ZYT065(065) | 24 | ≤0.8 | 4000±8% | ≤7.3 | 3000±8% | 0.35 | 110 | 147 |
| 63ZYT074(074) | 24 | ≤0.8 | 4000±8% | ≤8.3 | 3000±8% | 0.4 | 126 | 156 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
Permanent Magnet Brushed DC Motor Information
Today, this humble permanent magnet brushed DC motor is still a favorite of designers of small mobile robots, automotive systems, and toys, and it consists of the following three components:
▲Shell with two permanent magnets: these two permanent magnets together constitute the stator;
▲ Rotor or armature: The two are composed of at least two copper coils (windings) wound on the iron core, and the iron core rotates in the stator.
▲Commutator and brushes: responsible for connecting the power supply to the rotating coil. The commutator is divided into several isolated segments so that the electromagnetic field generated by each coil continuously reverses polarity as the shaft rotates.
