Product Details:
|
| Voltage: | 24-48V | Power: | 100-400W |
|---|---|---|---|
| Speed: | 1000-3000rpm | Type: | PMDC Motor |
| IP: | 20/44 | Torque: | 0.4-1.6 |
| Insulation: | B/F | Origin: | China |
| Highlight: | 24v high torque brushed dc motor,100v high torque brushed dc motor,gear box 12v brushed dc motor |
||

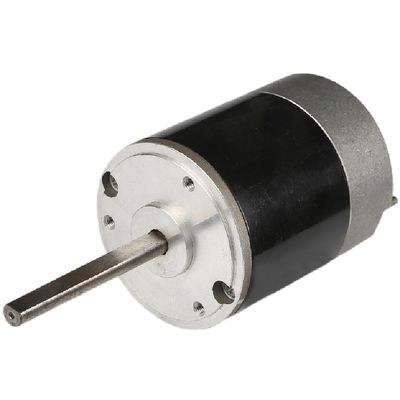

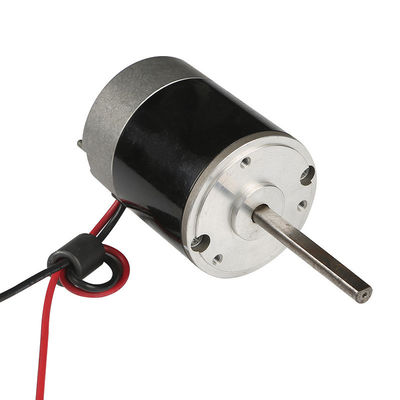

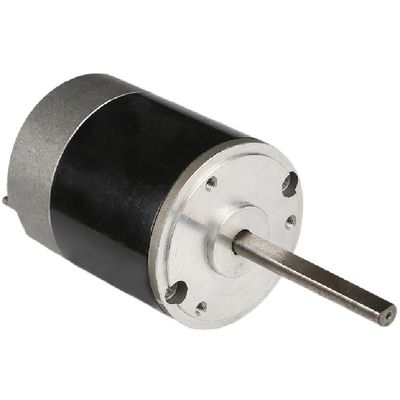

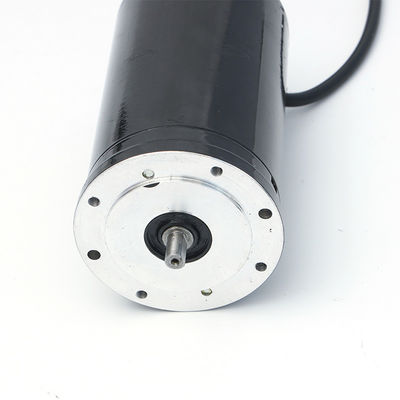

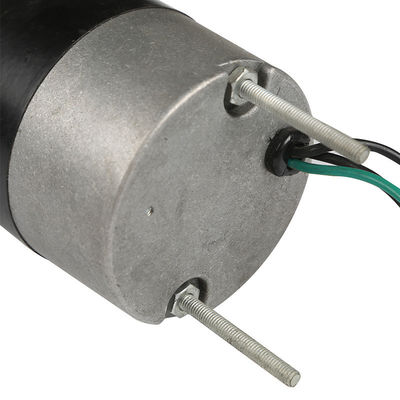

76ZYT high torque 24-100V Permanent Magnet Brushed DC Motor for Solar Tracker Reduction Gear Box
Introduction
This is a permanent magnet brushed DC motor 100-400W use for mechanical equipment or agriculture auto machine and similar application. The motor shaft power and speed can be designed base on customer demand. We have almost all type of motors which used in outdoor advertising, medical equipment and mechanical equipment, feel free to send us a inquiry.
Quick Details
Type: Permanent Magnet Brushed DC Motor
Output Power:100-400W
Certification:CCC, CE, ROHS
Protect Feature:Totally Enclosed
Voltage:24/36 V/48V/100V
Insulation:Class B
Warranty:3months-1year
Place of Origin: China
Specification
| MODEL | VOLTAGE | No Load | Rated load | N.m TORQUE | W Power |
mm Length | ||
| CURRENT | SPEED | CURRENT | SPEED | |||||
| 76ZYT001(040) | 24 | ≤0.8 | 2500 ±8% | ≤5.3 | 2000 ±8% | 0.4 | 84 | 112 |
| 76ZYT001(040) | 24 | ≤1 | 3600 ±8% | ≤7.5 | 3000 ±8% | 0.4 | 126 | 112 |
| 76ZYT001(040) | 100 | ≤0.2 | 2400 ±8% | ≤l.3 | 1900 ±8% | 0.4 | 80 | 112 |
| 76ZYT060 | 24 | ≤0.5 | 1500±8% | ≤4.7 | 1100 ±8% | 0.6 | 69 | 137 |
| 76ZYT060 | 24 | ≤1.3 | 3000 ±8% | ≤9.3 | 2500 ±8% | 0.6 | 157 | 137 |
| 76ZYT060 | 110 | ≤0.3 | 3700 ±8% | ≤2.5 | 3200 ±8% | 0.6 | 201 | 137 |
| 76ZYT075 | 24 | ≤0.6 | 3600 ±8% | ≤14 | 3000 ±8% | 0.75 | 236 | 152 |
| 76ZYT100 | 24 | ≤1 | 3600 ±8% | ≤18 | 3000 ±9% | 1 | 314 | 177 |
Application
Outdoor advertising
Medical equipment
Mechanical equipment
BOAT
Electric Bicycle
Auto robot machine
Solar tracker
Channel gate
Permanent Magnet Brushed DC Motor Information
Permanent Magnet Brushed DC motor refers to the conversion of DC electrical energy into mechanical energy
The brushed motor contains a brush device.
The brush device is used to introduce or draw out DC voltage and current. The brush device consists of a brush, a brush holder, a brush rod and a brush rod holder.
We offer permanent magnet brushed and brushless DC motors for applications requiring a 1-150 W power range and a 1.5V-30V voltage range.
Under the premise of low noise and long life, a variety of speed types are available. Motors, gearboxes and encoders can be combined and are equipped with feedback devices for incremental and absolute encoders.
