Product Details:
|
| Type: | CBB Capacitor | Voltage: | 110VAC-600VAC |
|---|---|---|---|
| Capacitance Tolerance: | ±3%、±5%、±10% | Safety Class: | S0/S1/S2 |
| Product Certificates: | VDE、UL、CUL | Value: | 1-200uF |
| Highlight: | 1uf electric fan motor capacitor,200uf electric fan motor capacitor,class C blower fan motor capacitor |
||

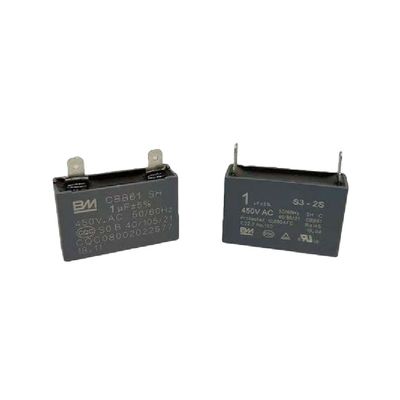

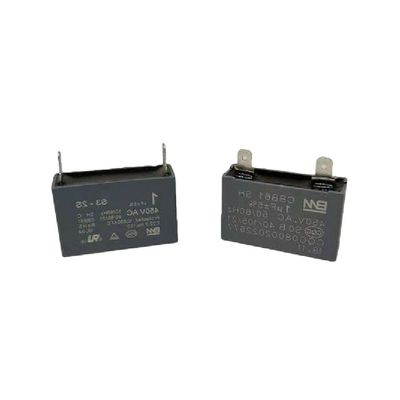

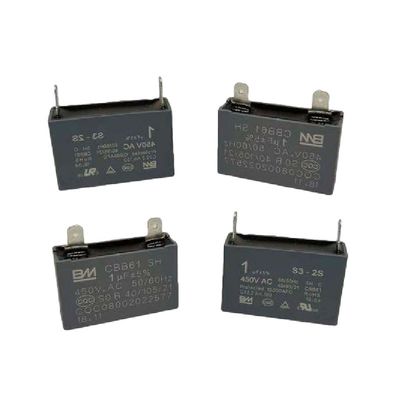

1-200 Uf Explosion Proof Class C Capacitor For Blower Fan Motor
Introduction
This is a type of top cover bulge capacitor for motors. It is designed for motors starting which used in air conditioner, dish washing machine and other similar application. The size, value and class can redesign base on different requirements, all capacitors get approval of CE, TUV, UL. We can sell capacitors along with our motor products. Feel free to send us motor or capacitor inquiry.
Standard
Feature
Law dissipation factor
Low temperature rise
Long service life
Excellent self healing property
Stable capacitance
Inner explosion-proof device
Application
Mainly as motor run capacitor for Air conditioner,washing machine, dishwasher, fan ect.
Technical parameter
| Rate voltage | 110VAC-600VAC |
| Overload voltage | Be allowable to operate under 1.1 Un |
| Tolerance | t5%,+10/一5%,+10% |
| Overload current | Be allowable to operate under 1.3 Un |
| Dissipation factor | tg6s0.0025(100Hz) |
|
Operation temperature |
40/70/21, 40/85/21 |
| Safety level | 10000AFCS2Class of operation: C(3000h) |
| Withstanding voltage |
between terminal to case 2000VAC or 2. 4Un+1200VAC
|
| Withstanding voltage |
between terminal to terminal: 2Un/5s
|
| Life expectation | 3000hours |
| Approval | UL,CULTUVVDE,CQC |
More information of motor capacitor
The capacitor is called the phase-shifting capacitor, also called the starting capacitor.
A unidirectional motor must generate a torque (a rotating force) to rotate. Then this torque is obtained by combining the coil with capacitance (starting winding) and the coil without capacitance (main winding).
If the electric fan does not rotate, it is because the capacitor is broken, and the fan makes a sound of weaving, but it does not rotate. If you turn the fan by hand, the fan will rotate normally. This is what this capacitor does: to generate a starting torque.
AC motor to connect capacitor, capacitance is to produce phase difference, and let the motor magnetic field produce "asynchronous", the motor will rotate.
