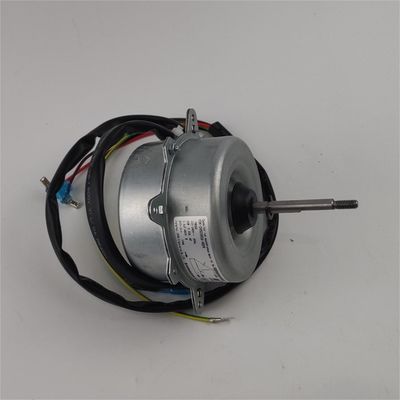

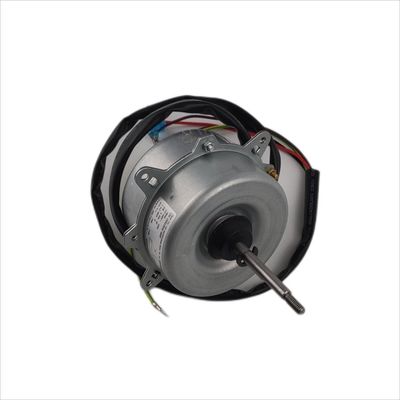

220v Single Phase AC Fan Motor 1-1.5P 9000-12000BTU For Split Outdoor

Single phase 220V AC Fan Motors for split outdoor 1-1.5P 9000-12000BTU Room conditioner

Introduction

This is a typical split air conditioner outdoor unit fan motor. Many brands of air conditioners such as Gree, Midea, Haier and Zhigao, can use this motor for replacement in general, mainly for after-sales air conditioner maintenance market. The motor uses copper wire for longer service life.

We supply all types of air conditioner fan motors. Please feel free to contact us.

Specification

Product name : AC fan motor

• Rated Voltage:110/230V 50Hz/60Hz
• Output power range:10W-55W
• IP level:IP20/IP44
• High quality deep groove ball bearing with low noisy and long operating life
• Insulation class:B/F
• Automatic thermal cutoff
• Used in heating ventilation and air conditioning area

Our service

1. How can we guarantee quality?
Our Air Conditioner Fan Motors always a pre-production sample before mass production; Always final Inspection before shipment.

• What is your lead time?

It depends on the order quantity and the season you place the order. Usually we can ship within 30 days.

• Could you OEM the air conditioner fan motor?

Yes, it is fine for us.

• What is the shipping method of the air conditioner fan motor ?

Usually by sea as the fan motor is heavy goods.

More information of AC fan motor

AC motor fan in operation due to friction, vibration, insulation aging and other reasons, it is inevitable to fail. If these faults are checked, discovered and eliminated in time, they can effectively prevent accidents.

Common fault checks

1. Listen to the sound, carefully find the fault point AC asynchronous fan motor in operation, if you find a finer "buzz" sound, there is no sudden change of high and low, is a normal sound, if the sound is coarse, and there is a sharp "buzz", "sizzling" sound is a precursor to the existence of failure, the following reasons should be considered:

(l) The vibration of the iron core loosening fan motor in operation, and the sudden change of temperature will deform the core fixing bolt, causing the silicon steel sheet to loosen and produce large electromagnetic noise.

(2) Rotor noise. The sound emitted by the rotation of the rotor, generated by the cooling fan, is a "whine" sound, if there is a "bang" sound like when beating the drum, this is the motor in the sudden start, stop, reverse brake and other variable speed conditions, the acceleration torque makes the rotor core and the shaft of the cooperation loose, the light can continue to use, the heavy disassemble for inspection and repair.
