Product Details:
|
| Product Name: | 3 Phase Industrial Motor | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 800-1300 | Power: | 30-1750W |
| Voltage: | 110v-230v/380V | Insulation: | Class B |
| IP: | IP20-44 | Protection: | Automatic Thermal Cutoff |
| Highlight: | NEMA 120v 60hz fan motor,56 frame 120v 60hz fan motor,120v fan motor 0.5hp |
||

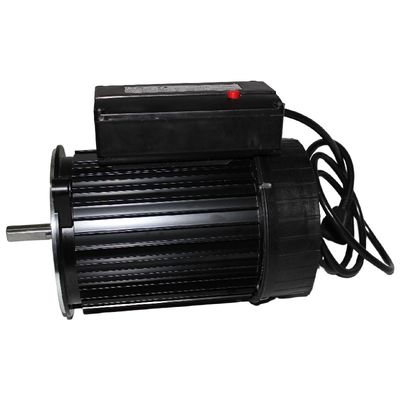

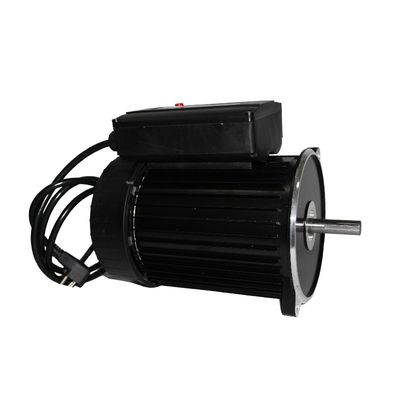

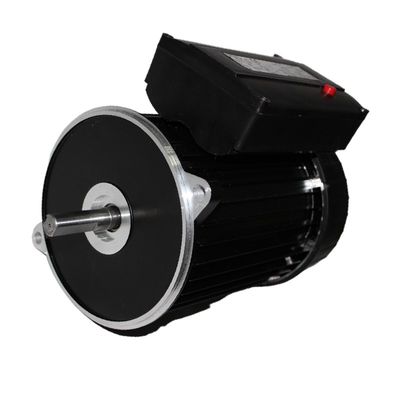

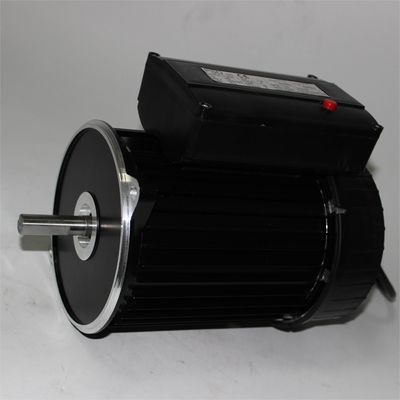

380V/120V 50/60HZ 56Frame Nema 0.5HP 3 Phase Industrial Motor for ice maker machine
Introduction
Changzhou Hengsheng Electric Co., Ltd, located in Changzhou city, Jiangsu Province, has been specialized in the field of exporting high quality 3 phase industrial motor for animal husbandry, heat pump, farm, axial fans and other big fans for special applications.This 3 phase industrial motor is for big axial fans. We can also sell motors with fans as solution.
Quick Details
Output Power:370-2200W
Type: 3 phase industrial motor
Frequency:50/60hz
Phase:Single-phase/ 3 Phase
Certification:CCC, CE, ROHS, UL
Protect Feature:Totally Enclosed
Rated Voltage:115/120 V/208-230V/380V
Insulation:Class B
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-370-8P | 380V | 50/60 | 710 | 370W 1/2HP |
| YSK-550-8P | 380V | 50/60 | 700 | 550W 3/4HP |
| YSK-750-8P | 380V | 50/60 | 710 | 550W 1HP |
| YSK-1500W-8P | 380V | 50/60 | 720 | 1500W 2HP |
Feature
Stable packed structure
Low noise
Less vibration
Cooper wire
Automatic thermal cutoff
More information of 3 Phase Industrial Motor
Classified according to the form of 3phase industrial motor protection
(1) In addition to the necessary supporting structure, the 3 phase industrial motor has no special protection for the rotating and live parts---open frame.
(2) The rotating and live parts of the 3 phase industrial motor have the necessary mechanical protection. But does not significantly impede ventilation. According to its vent protection structure, it is different. There are three types: mesh cover type, drip type, splash type type. The anti-drip type is different from the splash-proof type, which prevents solids or liquids from falling vertically from entering the interior of the motor, while the splash-proof type prevents liquids or solids from entering the motor in any direction within 1000 angles from the perpendicular.
(3) The closed motor casing structure can prevent the free exchange of air inside and outside the shell. However, a complete seal is not required.
(4) The waterproof 3 phase industrial motor casing structure can prevent water with a certain pressure from entering the inside of the motor.
(5) Watertight when the motor is submerged in water. The structure of the motor housing prevents water from entering the interior of the motor.
