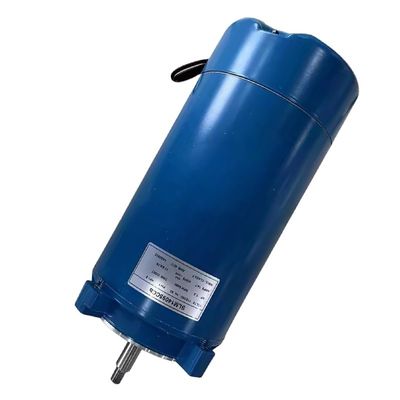

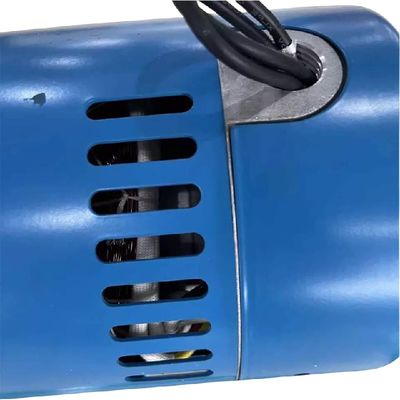

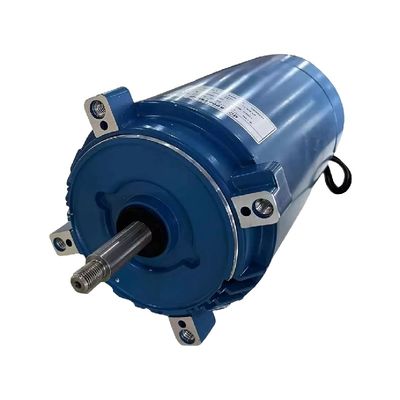

Product Details:
|
| Name: | Electric Water Pump Motor | Voltage: | 110-115V/208-230V |
|---|---|---|---|
| Phase: | Single Phase | Application: | Pool Water Pump |
| Power: | 500-2500W | Speed: | 3000rpm |
| Frequency: | 50/60hz | Insulation: | Class B |
| Highlight: | 1.5HP Electric Water Pump Motor,2.0HP Electric Water Pump Motor,220v swimming pool pump motor |
||
Introduction
Till now, Hengsheng has a variouty of specifications of Electric water pump Motors, and different induction motor, geared motor, PM motor with gearbox. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CCC, RoHS and ISO9001:2008. We supply Hayward Pentair for this type of water pump motors.
Quick Details
Warranty:1 year
Place of Origin:Jiangsu, China
Model Number:YY16525C4P
Type:Induction Motor
Frequency:50/60Hz
Phase:Single-phase
Protect Feature:Waterproof
Efficiency:IE 2
Voltage(V):110-220v
Rated output power(W): 0.75HP 1HP 1.5HP 2.0HP
Rated speed(r/min):1760
Torque:2.606
Certification:RoHS
Specification
| Item No. | Voltage(V) | frequency(Hz) | Rated speed(r/min) | W | Insulation Class |
| YY11A50EC | 230 | 50 | 2830 | 320 | B |
| YY11A65EC | 230 | 50 | 2830 | 610 | B |
| YY11A75EC | 230 | 50 | 2830 | 730 | B |
| YY11A80EC | 230 | 50 | 2830 | 690 | B |
| YY11A105 | 230 | 50 | 2830 | 920 | B |
| YY11A110 | 230 | 50 | 2830 | 1050 | B |
Application
Pool pump
Water pump
Sewage pump
Pedestal pump
More information
How does an electric pump work?
An electric water pump requires electricity to run, and the transformer provides the necessary electricity through a switchboard. The motor of the electric water pump converts electrical energy into mechanical energy. If you are interested in any of our products, please feel free to visit our website and contact us directly for more information. We are looking forward to cooperate with you.
