Product Details:
|
| Voltage: | 110-115V/208-230V | Frequency: | 50/60 |
|---|---|---|---|
| Power: | 300-1200W | Speed: | 1350/1760 RPM |
| Type: | Induction Motor | Efficiency: | IE2 |
| Highlight: | 1000w Electric Water Pump Motor,high torque electric motor 220v,high torque electric motor 1.0hp |
||

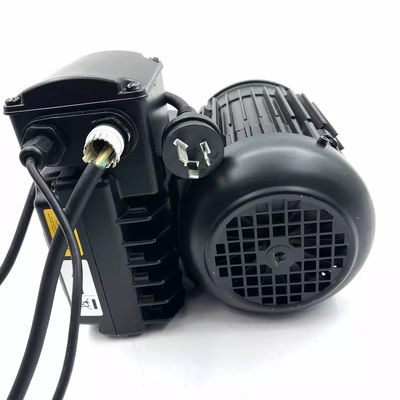

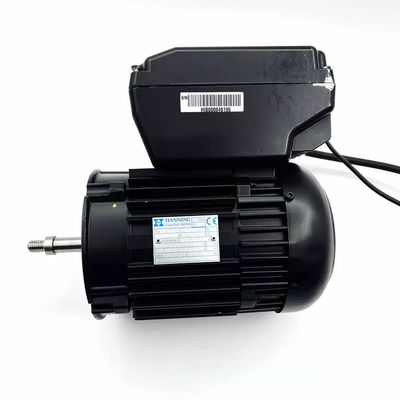

Hayward Pentair Xylem 220V 1.0HP 1.5HP 1000W 50hz High Torque ac motor by 3000rmp single phase for water pump
Introduction
AC induction motors for water pump applications.
Motors are customized by different requirements.
Quick Details
Output Power:300-1250W
Type:Asynchronous Motor, Induction Motor
Frequency:50/60hz
Protect Feature:Totally Enclosed
Voltage:115/120 V/208-230V
CCC/CE/UL certification
Application
♦ Cleaning machine

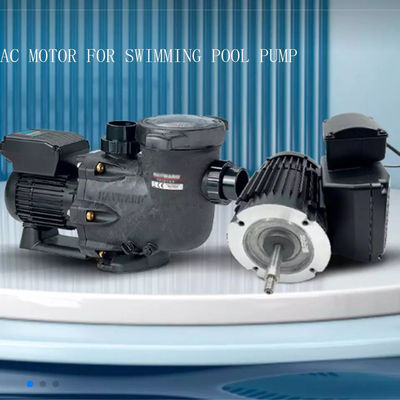

♦ Swimming pool
♦ Jet well pump
♦ Water pump
Advantages:
1. More than 20 years motor manufacturing and design experiences.
2. Strong enterprise innovation, with groups of professional engineers and salesmen.
3. Put quality as priority.
4. Small MOQ.
5. Customize products.
| Item No. | Voltage(V) | Frequency(Hz) | Rated speed(r/min) | W | Insulation Class |
| YY11A50EC | 230 | 50 | 2830 | 320 | B |
| YY11A65EC | 230 | 50 | 2830 | 610 | B |
| YY11A75EC | 230 | 50 | 2830 | 730 | B |
| YY11A80EC | 230 | 50 | 2830 | 690 | B |
| YY11A105 | 230 | 50 | 2830 | 920 | B |
| YY11A110 | 230 | 50 | 2830 | 1050 | B |
