Product Details:
|
| Voltage: | 110v-230v | Freqency: | 50/60hz |
|---|---|---|---|
| RPM: | 1350/1800 | ||
| Highlight: | 30w outside air conditioner fan motor,300w outside air conditioner fan motor,50hz split ac outdoor fan motor |
||

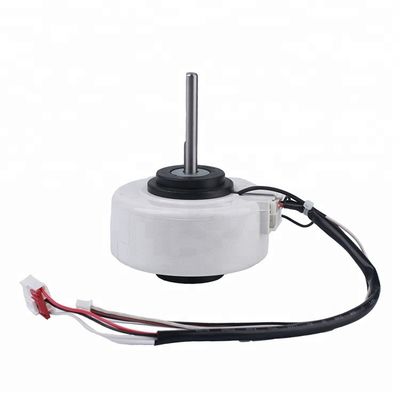

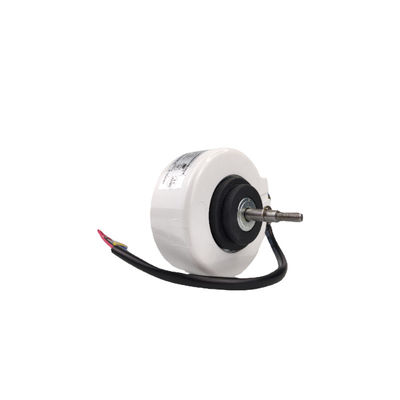

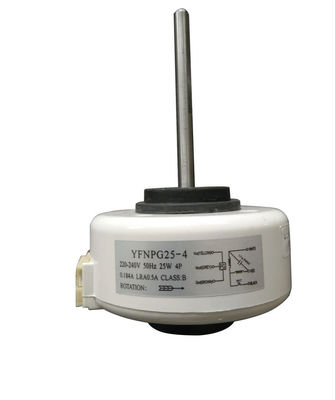

YDK 30-300w Air conditioner outdoor cooling electric fan motor for split type
Introduction
Resin packed ac single phase capacitor run motor
Motors are customized by different requirements.
We can sell motors with fans as solution.
Quick Details
Output Power:10-50W
Type:Asynchronous Motor, Induction Motor
Frequency:50/60hz
Phase:Single-phase
Certification:CCC, CE, ROHS, UL, ISO9000.UL.CSA
Protect Feature:Totally Enclosed
Voltage:115/120 V/208-230V
Insulation:Class B
Specification
| Model | Voltage | Hz | RPM | A | Output Power | Capacitor |
| YFK-07901304 | 220 | 50 | 1100 | 0.17 | 13 | 1.2 |
| YFK-07901004 | 115 | 60 | 1350 | 0.13 | 10 | 1.2 |
| YFK-07902604 | 220 | 50 | 1270 | 0.26 | 26 | 2.0 |
| YFK-07904504 | 230 | 60 | 1350 | 0.48 | 45 | 3.0 |
Feature
Resin packed structure
Shift tabs variable speed or fix 3 speeds
Cooper wire
CCC/CE/UL certification
Application
Air conditioning
Room air conditioner
Air purifier
Air blower
Ventilation fans
Advantages
Customized--We are the manufacturer! Samples are available!
Provide the technical design and solutions.
We can customize special design as customer demand.
Please feel free to contact us. Our sales team will provide you with 24 hours online service.
Product customization
Most of our poducts are customized, so it is quiet important for us that you can provide below information.
| Motor Spec. Information | |
| Voltage | |
| Frequency | |
| Input Power | |
| Output power | |
| Rated speed | |
| Size requirement | |
| Rotation | |
| IP class | |
| Ambient temperature | |
| Motor application | |
| Certification requirment | |
| Motor working time (Duty) | |
| Insulation class | |
| Testing requirment | |
| Temperature rise requirment | |
| Other special requirments | |
| Annual usage | |
| Notes: | |
| Please leave it blanky if you do not know how to fill in. | |
| Do you have motor drawing/photo, if yes, please provide | |
